Extruded Through The Weave 10 Inch Layflat Hose



Practical Features

Selection basis for nominal diameter: 10 in.

Jacket Construction: polyester filament.

Working Pressure: 10-16bar.

The approved configuration is suitable for compact rolled storage. Keep the confirmed value with the quotation.

Relevant applications include industrial fire brigades, mobile firefighting equipment and municipal water delivery. Confirm the available water pressure, connection standard and hose route and keep the accepted values with the technical documents.

For a repeat order, request a sample or drawing when an existing connection must be matched.

List marking, certificate and packing requirements before production. Use the approved values for receiving inspection.

Before production, state hose diameter, working pressure and finished roll length.

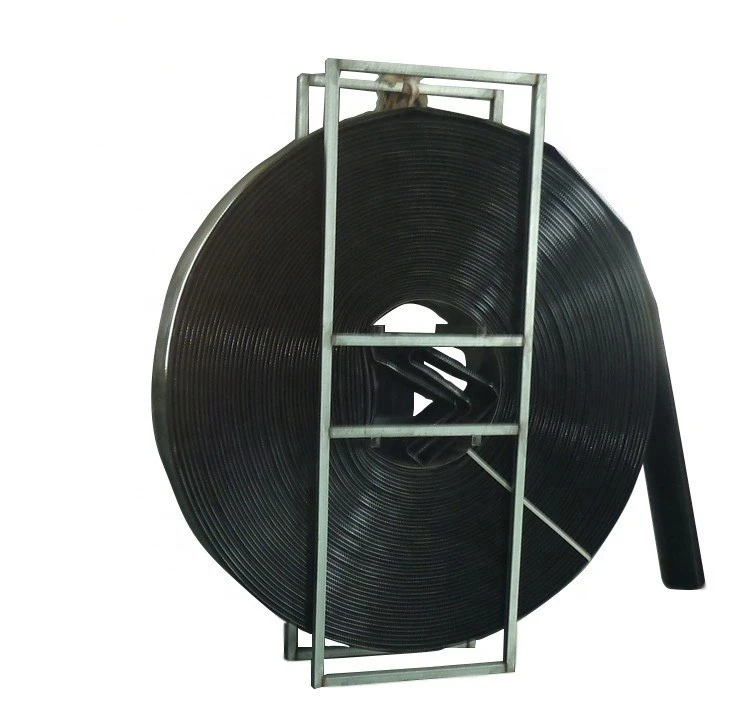

Figure 2. Alternative hose view

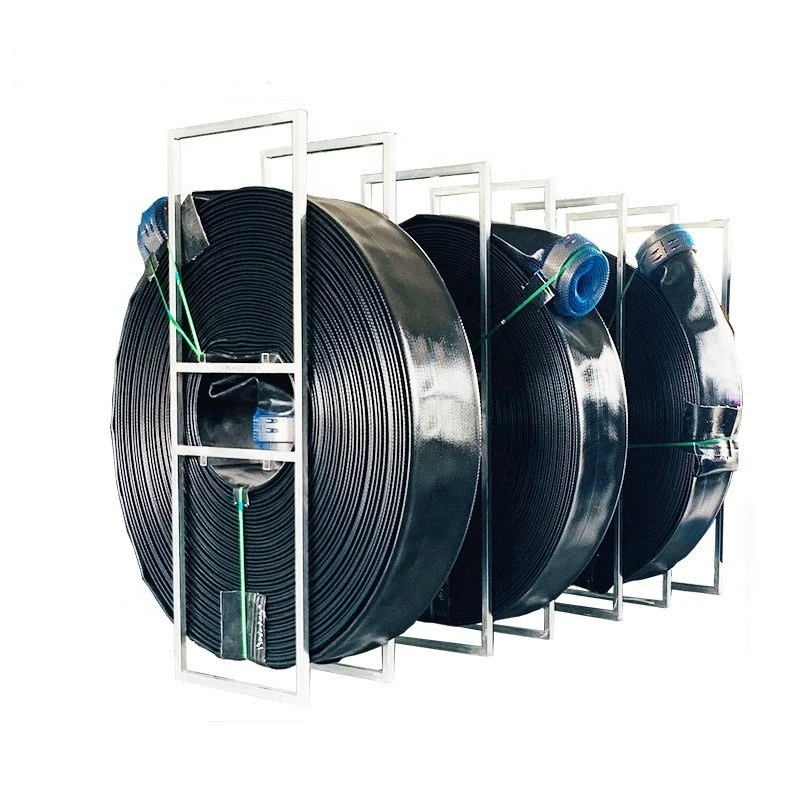

Figure 3. Jacket, lining or connection detail

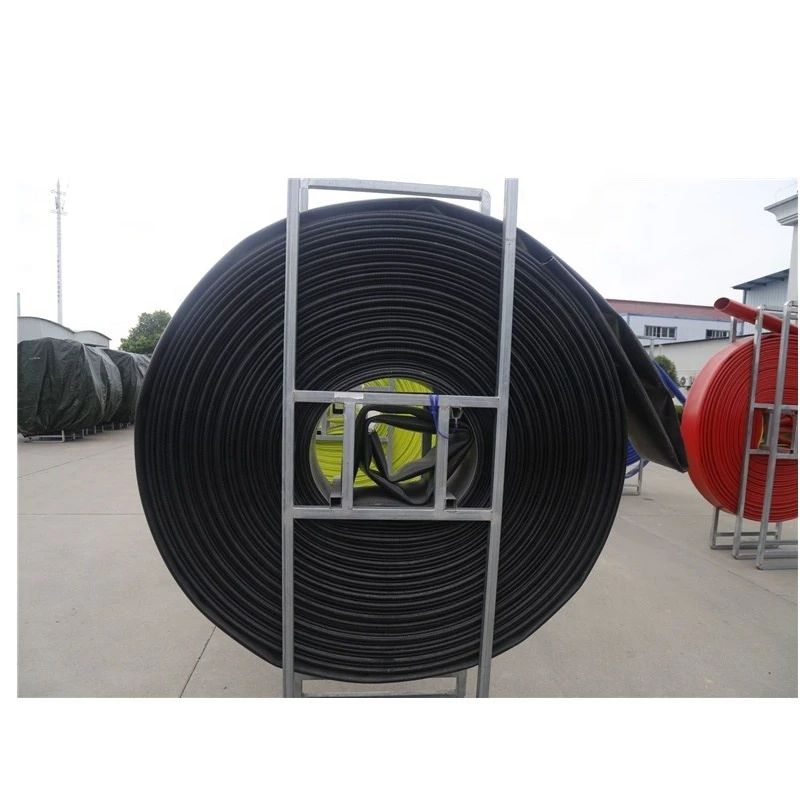

Figure 4. Rolled hose configuration

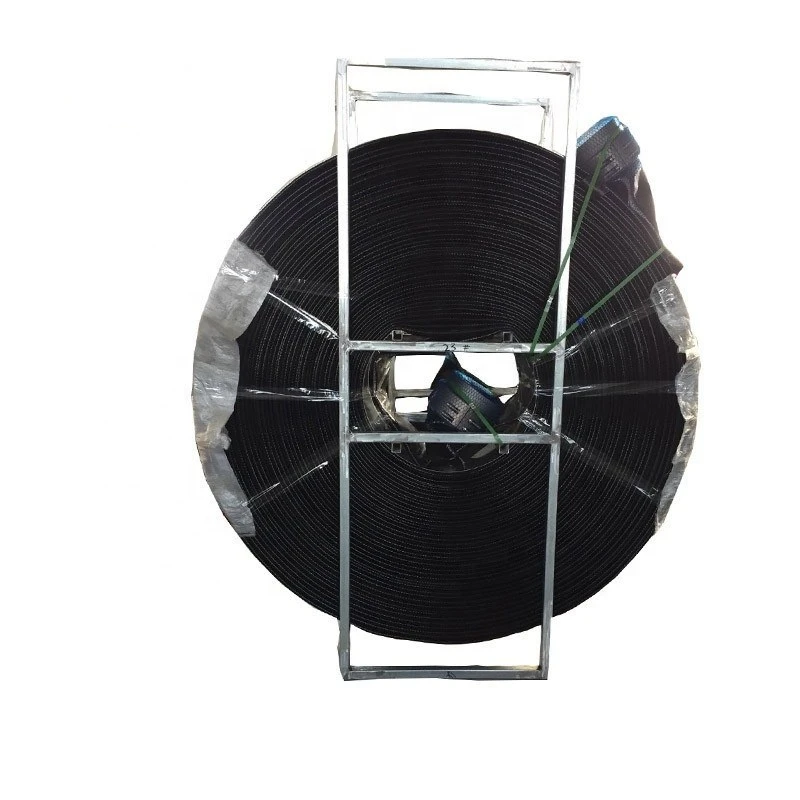

Figure 5. Product construction detail

Product views follow the available image sequence. Confirm the final configuration before production.
