Single Jacket 1-12 Inch Water Jacket Hose



Product Overview

Single Jacket 1-12 Inch Water Jacket Hose supports firefighting water delivery where a clearly defined product configuration is required. The available construction combines a PVC lining with a single-jacket body. Selection is based on diameter, pressure rating, lining, roll length and coupling.

Specified nominal diameter: 12 in.

Selection basis for lining: PVC.

The jacket construction is 100% polyester high tenacity yarn, twill weave.

For project selection, lining and jacket construction remain visible selection points.

Common projects include building hydrant systems, industrial fire brigades and mobile firefighting equipment. Review the available water pressure, connection standard and hose route so the supplied version fits the intended service.

State hose diameter, working pressure and finished roll length. Use the approved values for receiving inspection.

For the quotation, specify lining, jacket construction and required standard.

Provide coupling type, thread, quantity and destination. Use the approved values for receiving inspection.

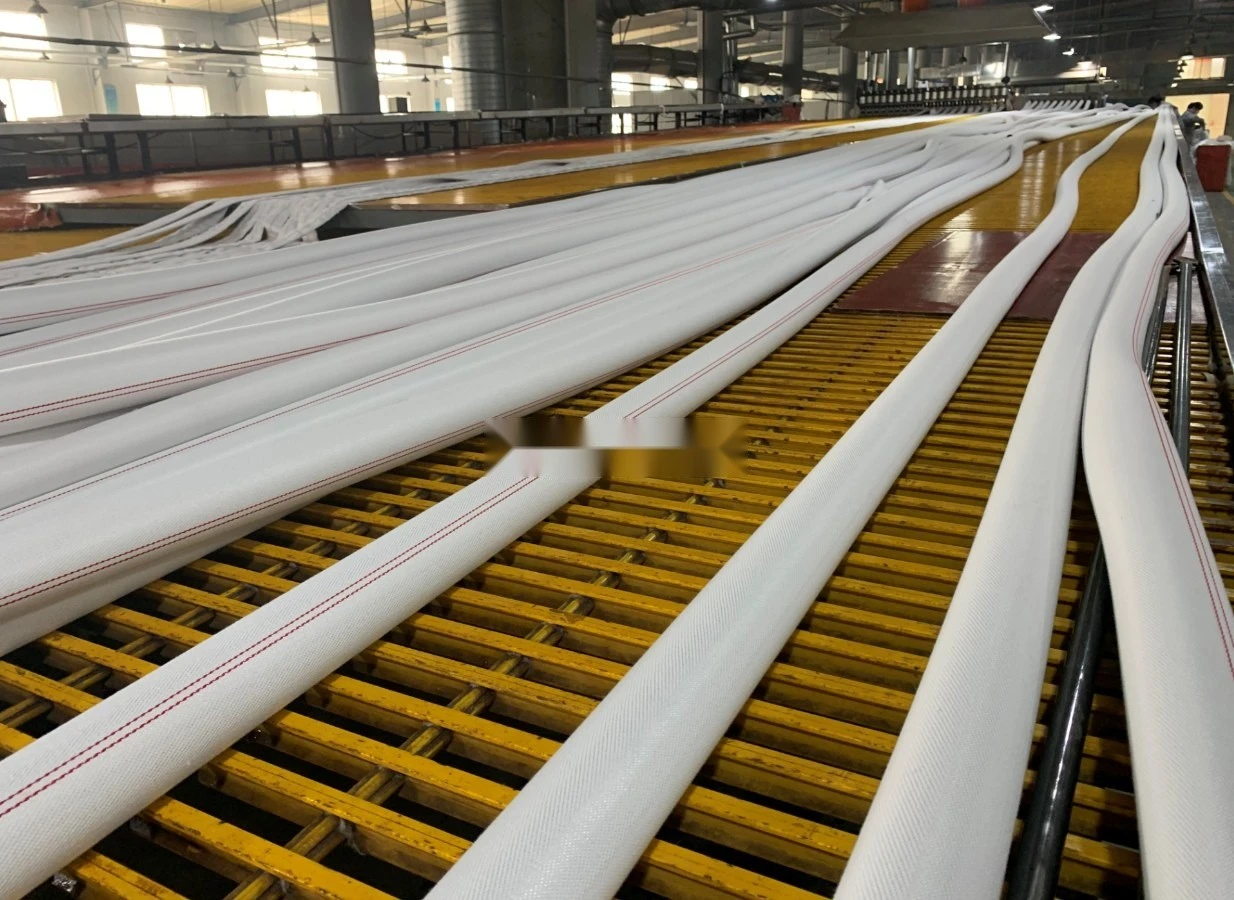

Figure 2. Alternative hose view

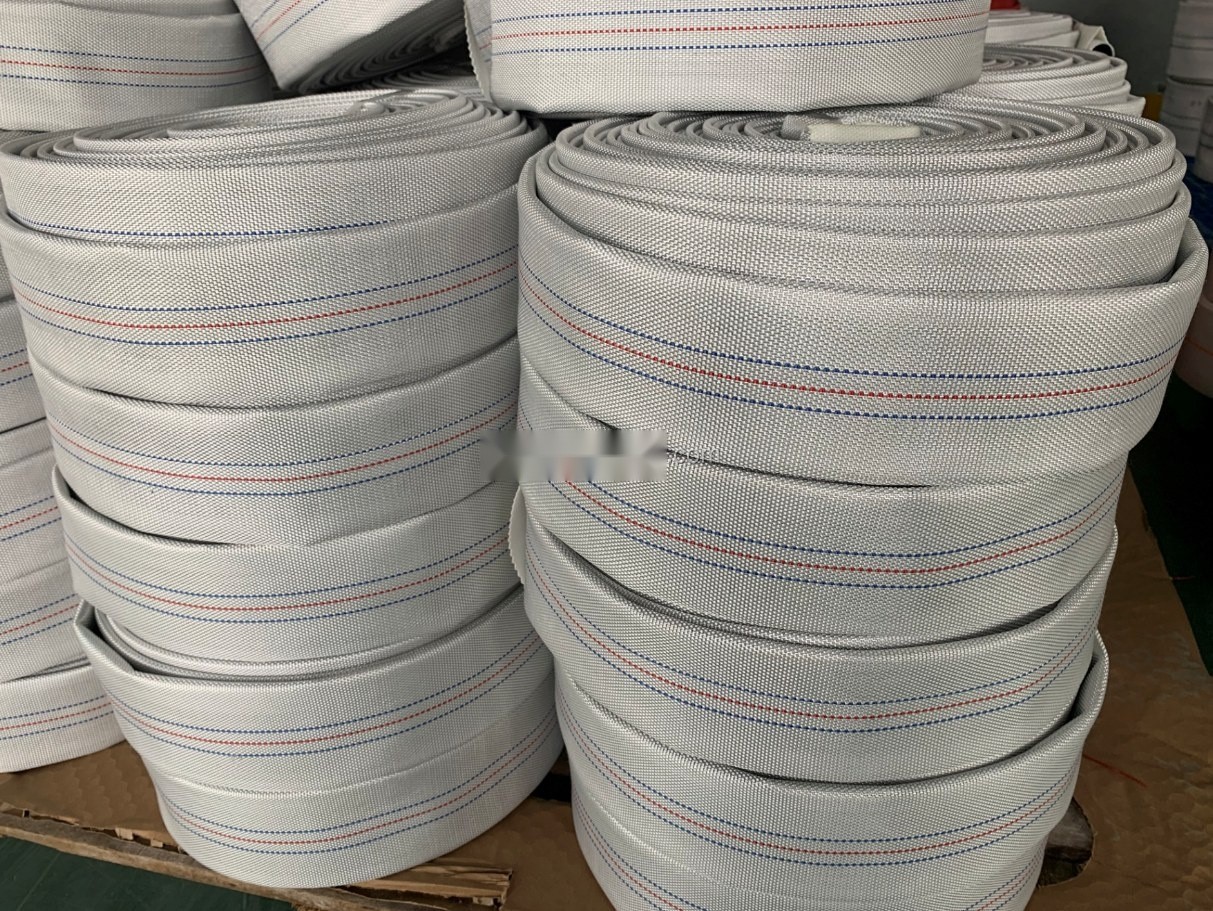

Figure 3. Jacket, lining or connection detail

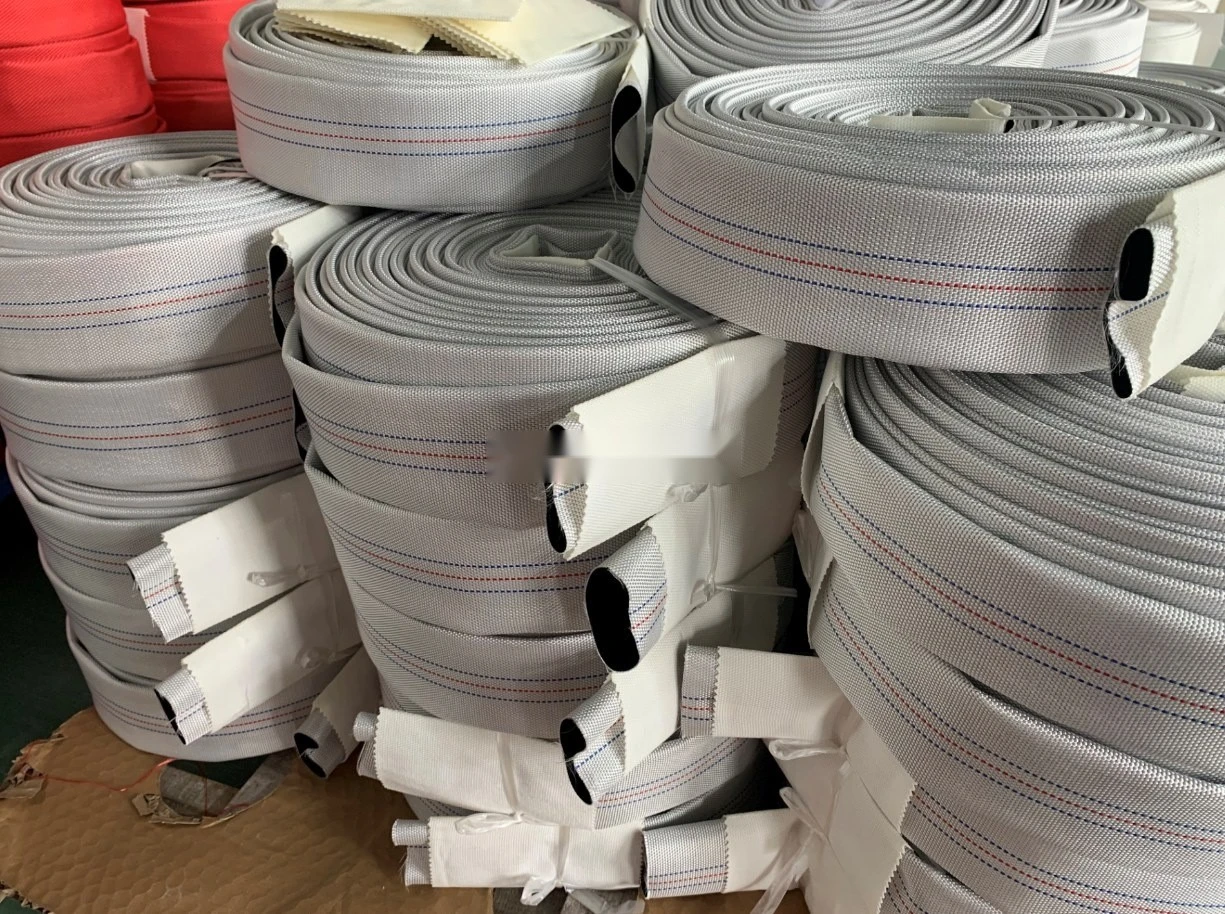

Figure 4. Rolled hose configuration

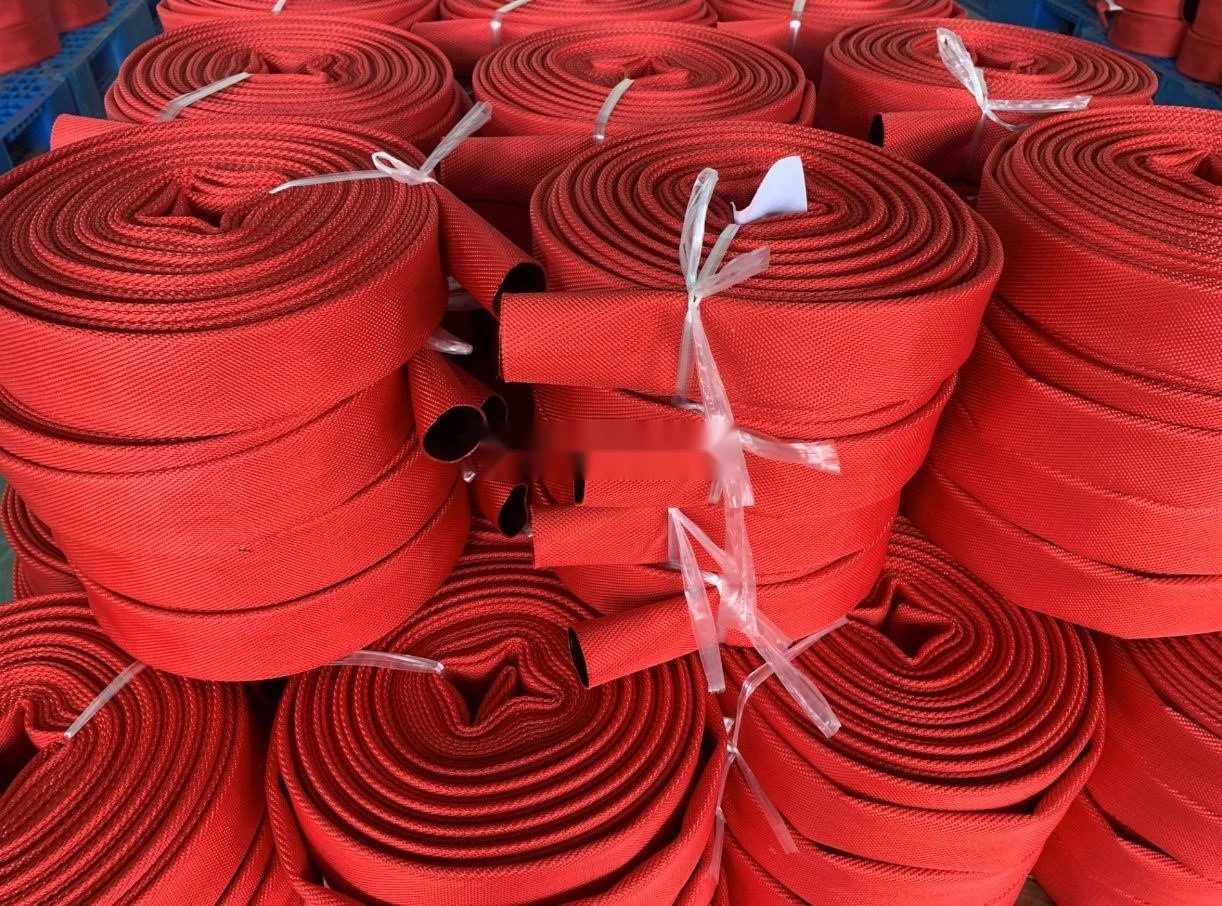

Figure 5. Product construction detail

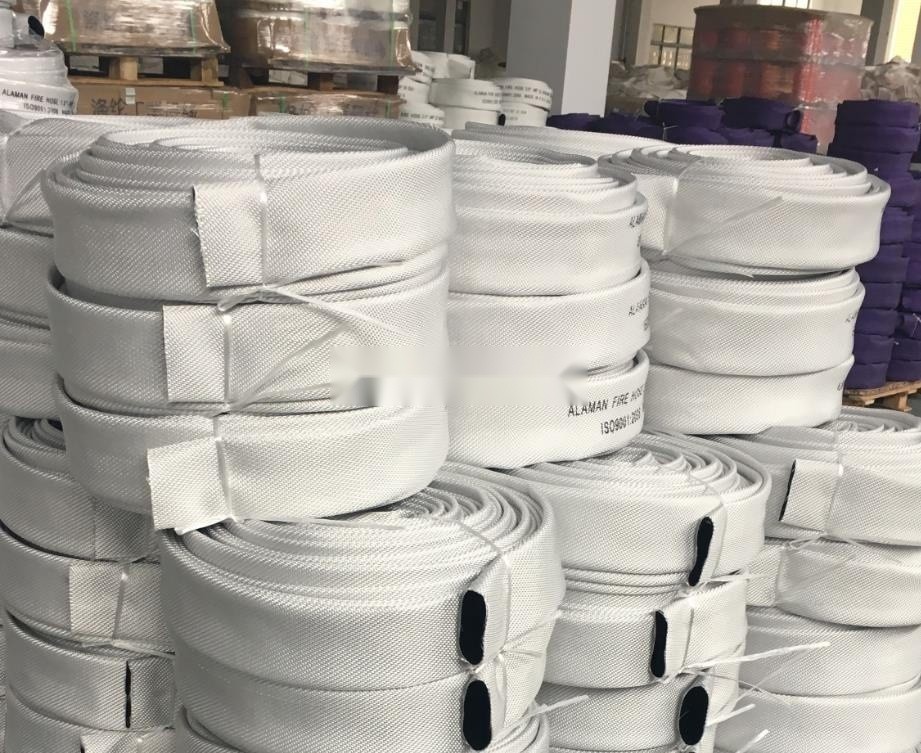

Figure 6. Additional hose view

Product views follow the available image sequence. Confirm the final configuration before production.
